110KW Scrap Shear Baler Auto Sheet Metal Cutting Machine

Jiangsu Gaode Hydraulic Machinery Co., Ltd.
Contact Now

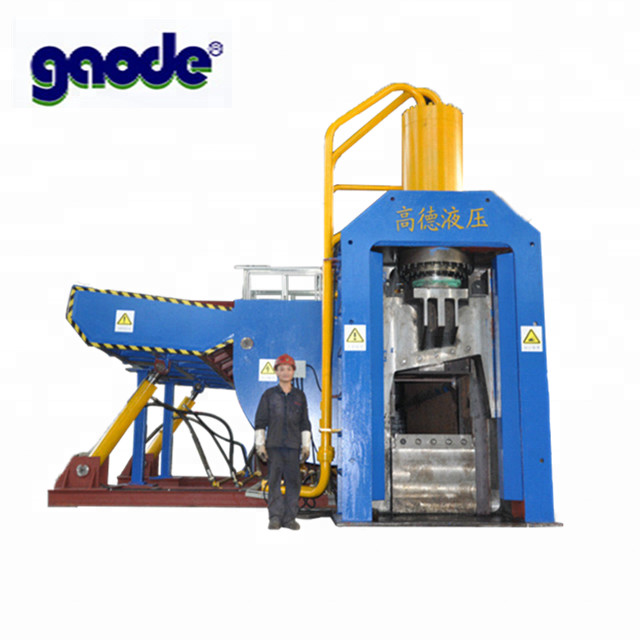

110KW Scrap Shear Baler Auto Sheet Metal Cutting Machine

Place of Origin : Jiangsu, China

Brand Name : gaode

Certification : ISO9001:2008;SGS

Packaging Details : In Nude

Supply Ability : 10 Set/Sets per Year

Price : $150,000.00 - $200,000.00/sets

Condition : New

Voltage : 21.5MPa

Rated Power : 110KW

Dimension(L*W*H) : 11.7*2.3*2.3m

Warranty : 180 days

After-sales Service Provided : Engineers available to service machinery overseas

Weight : about 45 tons

Power Supply Voltage : customize

Name : Gaode supplier Scrap auto sheet metal cutting machine

Color : Customer Choose

Type : hydraulic

size : 11.7*2.3*2.3m

model : HBS

Brand : Gaode

power : 110KW

pressure : 21.5MPa

Port : Shanghai

Contact Now

Gaode supplier Scrap auto sheet metal cutting machine

110KW Scrap Shear Baler Auto Sheet Metal Cutting Machine

Applications:

The hydraulic baler & shear machinery is suitable for the cutting of scrap materials. Metal pieces are pressed 2- or 3-dimensionally by using the pressing lid, wing and feeding pusher, and cut or broken into pieces.

The machine is able to :

1. Pre-compress and cut scrap
2.Cut bars and profiles
3. Package light scrap
4. Squeeze and cut car bodies

technical parameter

No.

Name

Remarks

1

Cutting cylinder

Model

YG500/320-726

Stroke

726mm

Nominal force

5000KN

Quantity

1set

2

Press cylinder

Model

YG220/160-633

Stroke

633mm

Nominal force

1000KN*2

Quantity

2sets

3

Lid cylinder

Model

YG220/160-741

Stroke

741mm

Lid force

1000KN*2

Quantity

2sets

4

Side cylinder

Model

YG220/160-1300

Stroke

1300mm

Max thrust

1000KN*2

Quantity

2sets

5

Push cylinder

Model

YG220/160-5205

Stroke

5205mm

Max thrust

1000KN

Quantity

1set

6

Press box size (L*W*H)

5000*2000*1360mm

7

Bale size (W*H)

750*550mm

8

Hydraulic system working pressure

25MPa

9

Power

135KW

10

Power supply

380V/3PH,50Hz

11

Blade length

880mm

12

Cutting degree

10

13

Cutting frequency (in theory)

3times/min

Company Information

Gaode Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.

In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.Our company was first inaugurated in 2003.

Our Gaode brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.

Finished Products

110KW Scrap Shear Baler Auto Sheet Metal Cutting Machine

Our Exhibition

110KW Scrap Shear Baler Auto Sheet Metal Cutting Machine

Our Certification

110KW Scrap Shear Baler Auto Sheet Metal Cutting Machine

Welcome To Our Factory

110KW Scrap Shear Baler Auto Sheet Metal Cutting Machine

Our Services

6months guarantee for whole machine.

24hours technical support by email.

Calling or door to door service.

User manual and detailed video.

FAQ

1,Q;Can I add my logo on the machines?

A: Yes,OEM and ODM are available for us.

But you should send us the Trademark authorization letter.

2,Q:How can i get the after-service?

A: We will send you the spare parts by free if the problems caused by us.

If it is the men-made problems,we also send the spare parts,but you should pay.

3,Q:Do you have inspection procedures for machines?

A:100% self-inspection before packing

4,Q:Can I have a visit to your factory before the order?

A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.

5,Q: Can we order one set machine?

A:Yes, you can.
