After-sales Service Provided :Engineers available to service machinery overseas
Type :Packing Machine
Condition :New
Color :Customized
Brade Name :gaode
Max Force :63T

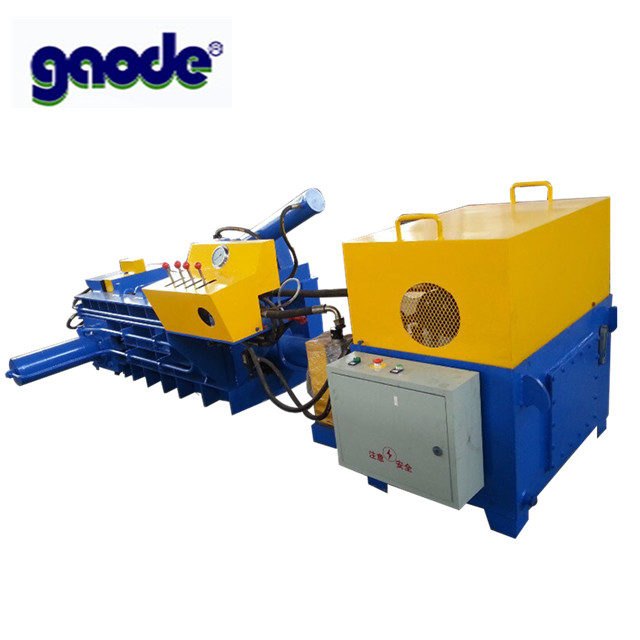

Name :630KN Mini Hydraulic Scrap Metal Baler Machine
Warranty :6Months
Press box :1000*600*500mm
Bale size :(~300)*300*300mm
Packaging Details :in nude
Port :Shanghai
Supply Ability :100 Set/Sets per Year
Price :$7,000.00 - $8,000.00/sets
Contact Now
Specification:
No.
Parameter
Ps
1
Main Cylinder
Model
YG180/120-305
1set
Nominal Thrust
630KN
Stroke
305MM
2
Side
Cylinder
Model
YG180/120-730
1set
Nominal Thrust
630KN
Stroke
730MM
3
Cover
Cylinder
Model
YG110/75-730
1set
Nominal Thrust
260KN
Stroke
730MM
4
Turn-out
Clinder
Model
YG100/65-340
1set
Nominal Thrust
80KN
Stroke
340MM
5
Press box(L×W×H)(MM)
1000*600*500
6
Bale size(L×W×H)(MM)
(~300)*300*300
7
Work press(Mpa)
21.5 Mpa
8
Bale dentisy(Kg/m3)
≥2000(Fe)
9
Cycle Time
≥90S
10
Motor
Model
Y132M-4
Power
7.5KW
Speed
1470r/min
Nos
1set
12
Pump
Model
25YCY14-1B
Press
31.5Mpa
Flux
25ml/r
Nos
1set
Features: 1, Hydraulic drive for all machine types, manual valve control or PLC control . 2, Bale-discharging:turn-out push-out forward-outor manual discharging. 3, No footing bolts needed in installation ; diesel engine can be equipped for power. 4, Baling force 10 grades from 63 to 400 tons ; productivity from 4 to 40 tons per shift ( 8 hours ) 5, Press box size, bale size & bale shape can be customized
Applications:
HC81 series of hydraulic metal balers are applicable in steel plants, recycling companies,
ferrous &non-ferrous smelting industry to press metal scraps (steel, copper, aluminum, stainless steel, discarded automobiles)
into acceptable furnace charges (shapes: cuboid, cylinder or octagon),
so as to reduce cost of transportation, to increase speed of furnace charging
Work Flow
Packaging & Shipping
Packaging: in nude wrapped with plastic film
Shipping port: Shanghai
Company Information
GAODE Hydraulic Machinery has been atrusted name in the waste recycling equipment industryfor over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane. In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.Our company was first inaugurated in 2003.We have combined advanced production and testing instruments with state-of-the-art manufacturing techniques to yield outstanding product quality.
