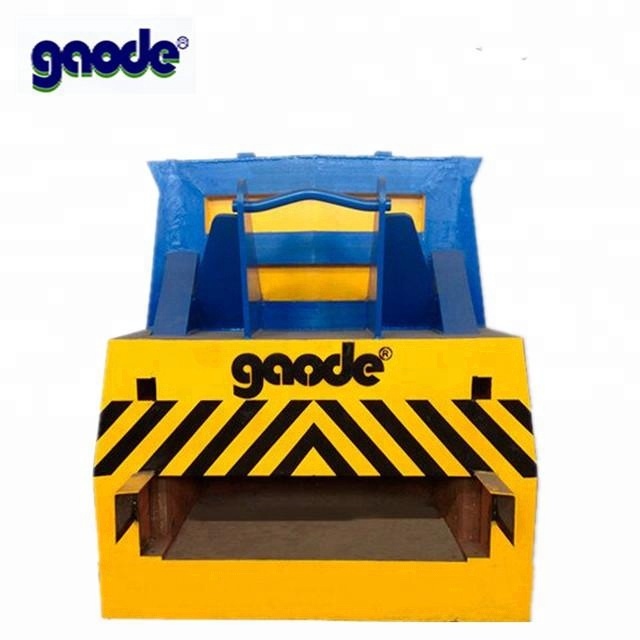

1 X 20' OT Hydraulic Container Shear Scrap Metal Baler Machine Automatic Copper Shear

Jiangsu Gaode Hydraulic Machinery Co., Ltd.
Contact Now

1 X 20' OT Hydraulic Container Shear Scrap Metal Baler Machine Automatic Copper Shear

Place of Origin : China

Brand Name : gaode

Packaging Details : in nude

Supply Ability : 7 Set/Sets per Month

Price : $70,000.00 - $150,000.00/sets

Condition : New

Warranty : 6months

Power (kW) : 74

Weight (KG) : 44000

Material / Metal Processed : Brass / Copper, ALLOY, Carbon steel, Aluminum, Stainless steel

Key Selling Points : High Productivity

Applicable Industries : Manufacturing Plant

After-sales Service Provided : Online support, Video technical support, Engineers available to service machinery overseas

container : 1*20' OT

name : Hydraulic scrap metal baler machine automatic copper shear

Color : customized

Blade length : 300MM

Working system pressure : 21.5Mpa

Feeding mouth : 3075*2200*860MM

Press box size : 2065*1200*1985MM

Brand : gaode

Port : Shanghai for portable hydraulic shear

Contact Now

Hydraulic scrap metal baler machine automatic copper shear

1 X 20' OT Hydraulic Container Shear Scrap Metal Baler Machine Automatic Copper Shear

Specification

CS4000 Scrap Shear ( container style)

No.

Technical Parameter

REMARKS

1

press box size

2500X1600 MM

2

blade length

1600 MM

3

cycle time

2-3 times/min

4

capacity

2.5-4.5 t/h

5

cooler

wind cooler

6

pressure system

25.0 Mpa

7

motor

model

Y225-S-4

power

37 KW

nominal speed

1460rpm

quantity

2 sets

8

pump

model

250YCY14-1B

outflow

250ml/r

nominal pressure

31.5MPa

quantity

2 sets

9

power supply

380V/50HZ

10

total power

74 KW

11

weight

20 T

Applications:

Scrap Shear is used for economical scrap processing, easy operation and flexible transportation with a roll on/ roll off system. It can cut any kinds of scrap material. Different models for your choice.

1 X 20' OT Hydraulic Container Shear Scrap Metal Baler Machine Automatic Copper Shear

1 X 20' OT Hydraulic Container Shear Scrap Metal Baler Machine Automatic Copper Shear

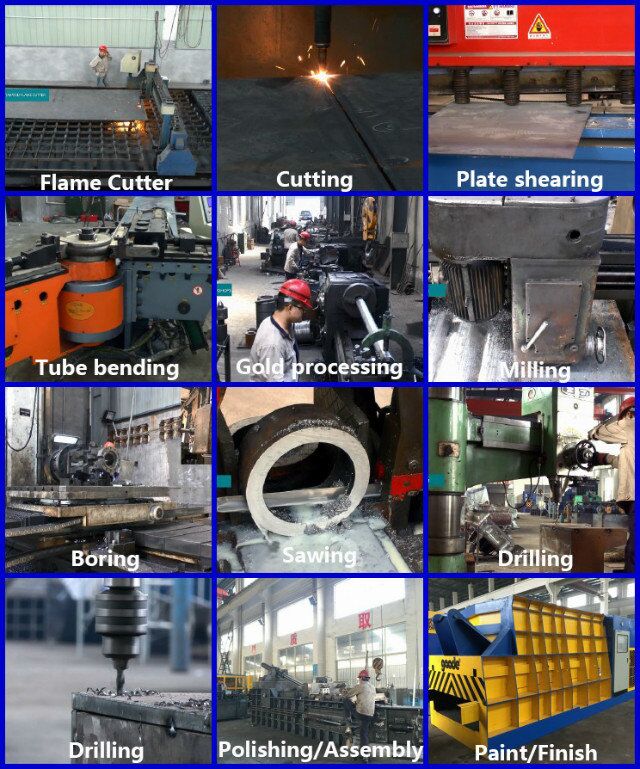

Work Flow

1 X 20' OT Hydraulic Container Shear Scrap Metal Baler Machine Automatic Copper Shear

Company Information

GAODE Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.

In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.Our company was first inaugurated in 2003.

Our GAODE brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.

1 X 20' OT Hydraulic Container Shear Scrap Metal Baler Machine Automatic Copper Shear
Fair show

1 X 20' OT Hydraulic Container Shear Scrap Metal Baler Machine Automatic Copper Shear

Certificate

1 X 20' OT Hydraulic Container Shear Scrap Metal Baler Machine Automatic Copper Shear

Our Services

Guarantee and after-sale service

6months guarantee for whole machine

24hours technical support by email

Calling or door to door service

User manual and detailed video

Contact Information

Tracy

Skype: bellabest4

Sales representative

Jiangsu Gaode Hydraulic Machinery Co.,Ltd

China factory

ADD: No. 691 Chengshan Road, Jiangyin City, Jiangsu Province.

Tel: +86 15896491581 (24 hours service) | Fax: +86 510 8699399

FAQ

Q1:Can I add my logo on the machines?

A: Yes,OEM and ODM are available for us.

But you should send us the Trademark authorization letter.

Q2:How can i get the after-service?

A: We will send you the spare parts by free if the problems caused by us.

If it is the men-made problems,we also send the spare parts,but you should pay.

Q3:Do you have inspection procedures for machines?

A:100% self-inspection before packing

Q4:Can I have a visit to your factory before the order?

A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.

Q5: Can we order one set machine?

A:Yes, you can.
